Pine Tree Lane Development

Project

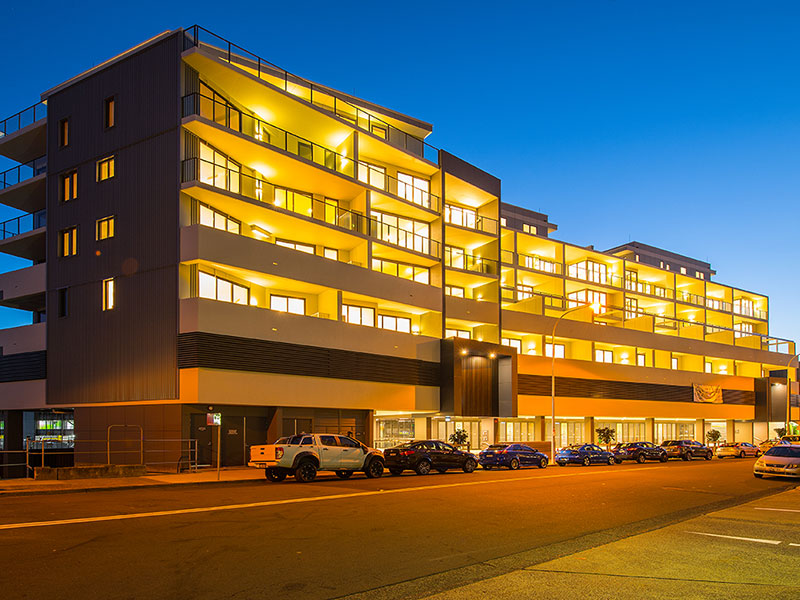

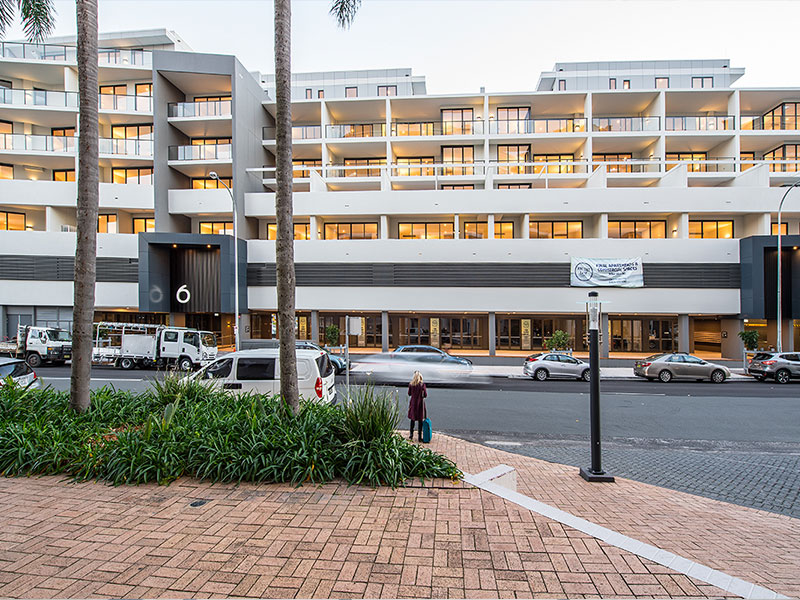

Pine Tree Lane Development
Pine Tree Lane, Terrigal, NSW

Client

Richard Crookes Constructions

Construction Budget

$32m

Project Details

The development is proposed to be a 6 storey building comprising:

  • Basement Level Carpark
  • Ground Floor commercial premises and amenities
  • First Floor Carpark level
  • 5 levels of Residential Apartments

Challenge Faced / Engineering Problem Solved:

  • Increased Earthquake Design requirements due to deep soft soils
  • High water table causing hydrostatic uplift pressures on the building
  • High corrosivity due to direct beachside exposure

Safe Strong Stable Solution

Construction systems used included:

  • Building supported on single grout injected piles
  • Continuously reinforced basement slabs
  • Post-tension suspended concrete systems
  • Structural steel framed roof and awnings

Engineering Design Services / Reviews

  • Earthquake and wind modelling, analysis and design
  • Footing and pile foundation design using grout injected concrete piles
  • Conventionally reinforced basement slab designed for hydrostatic uplift pressures
  • Suspended concrete upper level slab and beam designs using post tension systems
  • Structural steel column and wall analysis and engineering design
  • Structural steel roof rafters, purlins and awning framing analysis and engineering design

Project Type

New Building Construction

Engineering Type

Structural
Construction Phase Services

Project Stages

  • Site Investigation and Assessment of deep soils and high water table
  • Structural Engineering Design and Documentation
  • Design Workshops and Project Meetings
  • Design Coordination with all Consultants, Client and Principal Contractor
  • Safety in Design / Environmental Considerations
  • Construction Phase Services – Site Inspections, RFIs, Shop Drawing Reviews
