Project

Elysium Development, Terrigal, NSW – Under Construction

Client

Central Real

Construction Budget

$50m

Project Details

The development comprised:

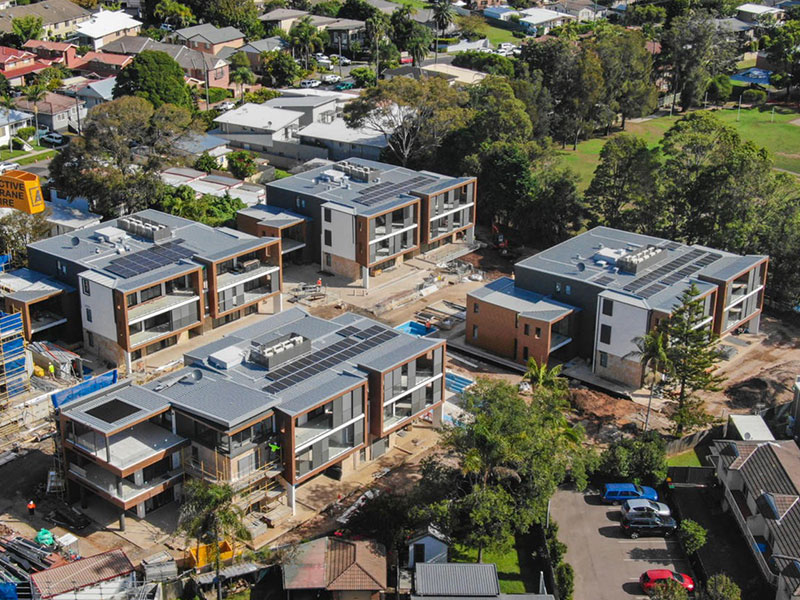

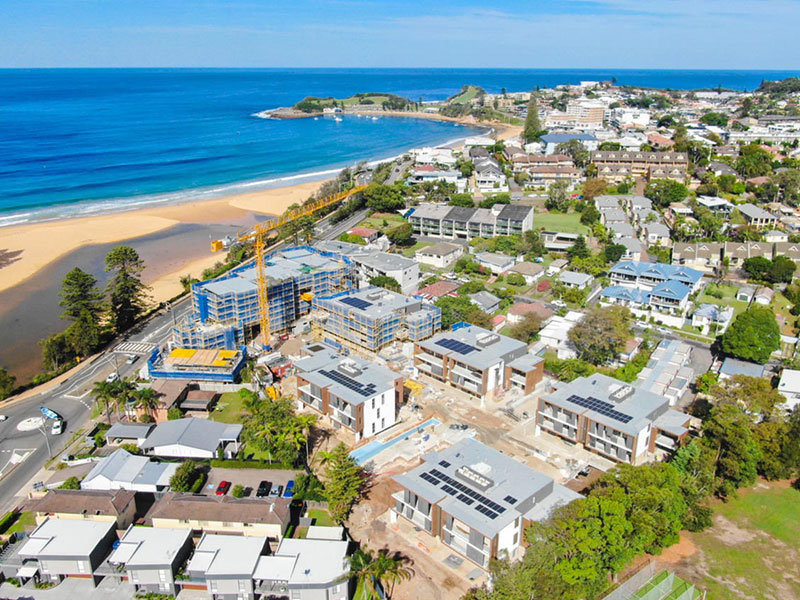

• 6 x multi-level structures over a continuous podium, ranging from 3 to 4 storeys
• Single level underground basement carpark under entire multi-storey buildings

Challenge Faced / Engineering Problem Solved:

• High level design water table required design of basement slab and footings for hydrostatic pressures
• Increased Earthquake Design requirements due to deep soft soils
• Sloping site required detailed temporary shoring and retaining wall design
• High lateral wind forces due to coastal exposure,
• High corrosivity due to coastal exposure

Safe Strong Stable Solution

Construction systems used included:

•  Building supported on steel screw piles
• Continuously reinforced basement slabs
• Dincel basement perimeter walls
• Post-tension suspended concrete systems
• Structural steel framed roof and awnings

Engineering Design Services / Reviews

• Earthquake and wind modelling, analysis and design
• Footing and pile foundation design using steel piles
• Conventionally reinforced basement slab design for hydrostatic uplift water pressures
• Suspended concrete upper level slab and beam designs using post tension systems
• Structural concrete and steel column and wall analysis and engineering design
• Structural steel roof rafters, purlins and awning framing analysis and engineering design
• Civil Stormwater pipe and pit modelling, analysis and design

Project Type

Existing Building Demolition
New Building Construction

Engineering Type

Structural and Civil
Construction Phase Services

Project Stages

• Site Investigation and Assessment of founding conditions and water table levels.
• Structural and Civil Engineering Design and Documentation
• Design Workshops and Project Meetings
• Design Coordination with all Consultants, Client and Principal Contractor
• Safety in Design / Environmental Consideration
• Construction Phase Services – Site Inspections, RFIs, Shop Drawing Reviews
