Opal Hillside Aged Care Facility

Project

Opal Hillside Aged Care Facility
Mt Hutton, NSW

Client

OPAL Aged Care

Construction Budget

$25m

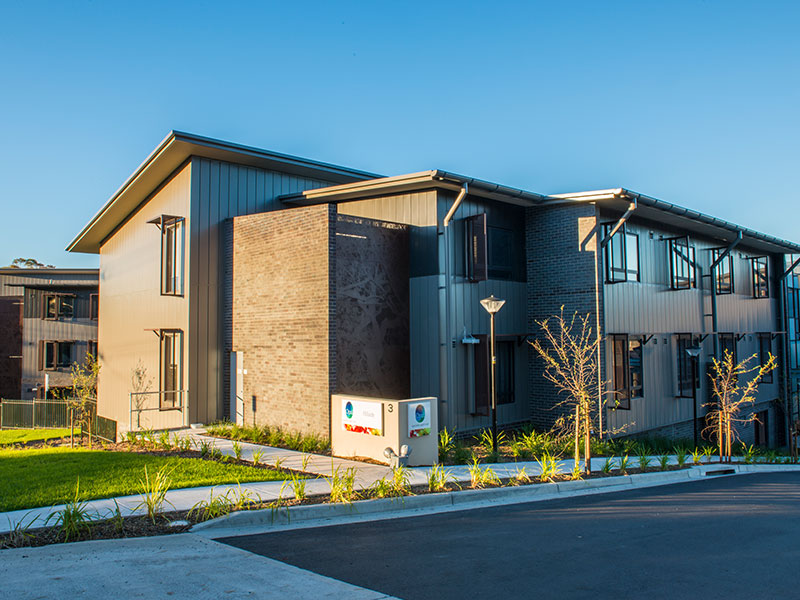

Project Details

The development comprised:

  • Construction of 128 bed residential aged care facility with an overall building footprint of over 6800m²
  • Structure included 3 wings each of 3 to 4 storeys with one wing including and underground basement for services and amenities
  • External carparking and access roads for servicing vehicles

Challenge Faced / Engineering Problem Solved:

  • Variable founding conditions and large mine subsidence ground strains required sliding bearing pads and compressible material around footings
  • Variable earthquake design requirements due to varying building levels, sliding bearing joints and requirements to support base shear forces
  • Sloping site required detailed temporary shoring considerations and retaining wall design
  • Detailed site internal roadworks modelling to facilitate suitable stormwater drainage and satisfying accessibility requirements on a steep site

Engineering Design Services / Reviews

  • Earthquake and wind modelling, analysis and design
  • Footing and pile foundations
  • Ground slab and footing engineering design on sliding bearing pads to satisfy mine subsidence design requirements
  • Structural concrete column and wall analysis and engineering design
  • Suspended concrete floor slab and beam engineering analysis and design using both conventional and post tension design solutions
  • Structural steel roof rafters, purlins and awning framing analysis and engineering design
  • Civil Stormwater pipe and pit modelling, analysis and design
  • Civil roadworks and pavement analysis and design
  • Sediment and Erosion Control Design

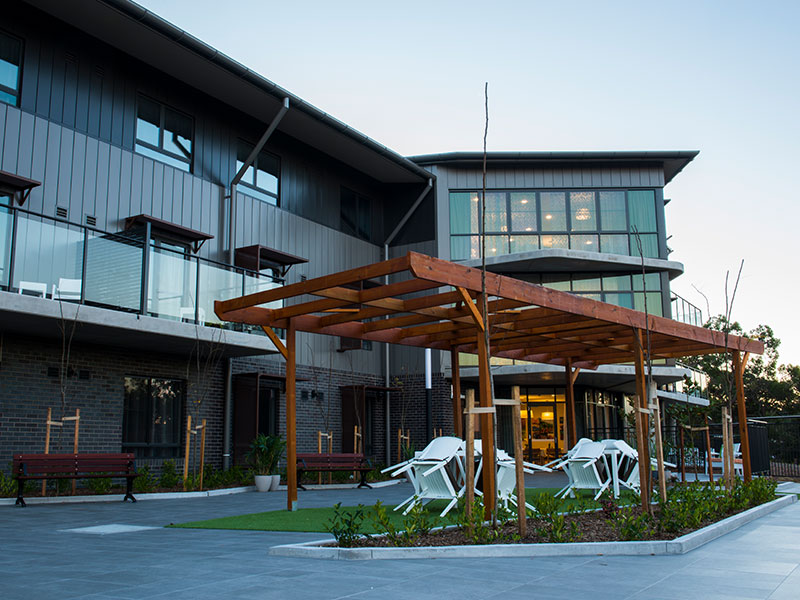

Safe Strong Stable Solution

Construction systems used included:

  • Building supported on reinforced concrete piles and pad footings due to varying footing levels for the building wings
  • Stiffened waffle pod slabs and footings
  • Reinforced block retaining walls
  • Post-tension suspended concrete systems
  • Structural steel framed roof and awnings

Project Type

Existing Building Demolition
New Building Construction

Engineering Type

Structural & Civil
Constructions Phase Services

Project Stages

  • Site Investigation and Assessment of variable founding conditions
  • Assessment of Mine Subsidence Design Requirements
  • Structural and Civil Engineering Design and Documentation
  • Design Workshops and Project Meetings
  • Design Coordination with all Consultants, Client and Principal Contractor
  • Safety in Design / Environmental Considerations
  • Construction Phase Services – Site Inspections, RFIs, Shop Drawing Reviews
